Features
- Compact and light off-line bypass oil cleaners.
- Built around a very compact power pack, they can easily be connected to the oil reservoir.
- The standard version comes fully equipped with a suction strainer and a GE on/off switch box with thermo-protection. All units have a mounting bracket for quick installation and a pressure gauge to check the element contamination level.
- All SE off-line oil cleaners are fitted with M-series 2μ absolute filter elements (beta ratio ß2 >400).
- Standard units are suitable for systems with an oil tank capacity up to 6.000 litres.
- Low running cost, easy installation & maintenance.
- Also available for water glycol fluids with coated housing and WG element.
Typical applications
- Injection moulding machines.
- Die-casting machines, metal working machines, like bending-, cutting-, punching machines.
- Mobile hydraulic equipment.
- All hydraulic systems fitted with proportional or servo-valves, and other high-tech hydraulic equipment.

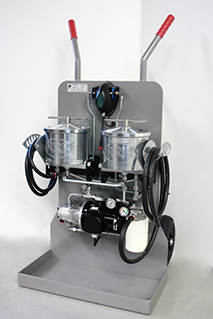

SE-specials: MOBILE version
A mobile oil cleaner is perfect for your service & maintenance activities, or for filtering new fresh oil.
We built a very handy mobile rig that can be used for a big variety of applications and service tasks.
We can also supply this SE-mobile unit fitted with a automatic Particle Counter. CONNECT - CHECK - CLEAN!
Data sheet SE-MOBILE
SE-specials: flexible Setup
The SE100E can be ordered for horizontal installation (BH-version) or for vertical, wall-mount installation (WH-version).
SE100E-BH 3D pdf file
SE100E-WH 3D pdf file
Technical specifications.
Optional equipment can consist of: on/off switch, lube oil pump (high viscosity) version, diesel oil pump version. Please always specify fluid type, oil/fluid viscosity and oil temperature.
SE-series - Technical specifications |
|||||
|---|---|---|---|---|---|
| Model | SE100E-BH | SE200E-BH | SE400E-BH | SE600E-BH | |
| Article Nr. 230V Article nr. 400V |
TR-101000 TR-101005 |
TR-102000 TR-102005 |
TR-104000 TR-104005 |
TR-106000 TR-106005 |
|
| Flow rate | 2,5 l/m | 5,0 l/m | 9,0 l/m | 12,0 l/m | |
| Element type | 100 size, M - E - X - D - WE - WG type | ||||
| Nr. of elements | 1 | 2 | 4 | 6 | |
| Max pressure | Relief valve opens at 6 bar ΔP | ||||
| Weight kg | 18,0 | 23,0 | 40,0 | 50,0 | |
| Dimension mm | 385 x 230 x 460 | 470 x 400 x 370 | 610 x 470 x 370 | 1080 x 470 x 370 | |
Filter model selection chart - the selection is based on the total volume of oil in your system. |
||||||||
|---|---|---|---|---|---|---|---|---|
| Model | up to Lit 500 | Lit 750 | Lit 1500 | Lit 2700 | Lit 3600 | |||
| SE100E-BH | ||||||||
| SE200E-BH | ||||||||
| SE400E-BH | ||||||||
| SE600E-BH | ||||||||
